Description of G10/EPGC203

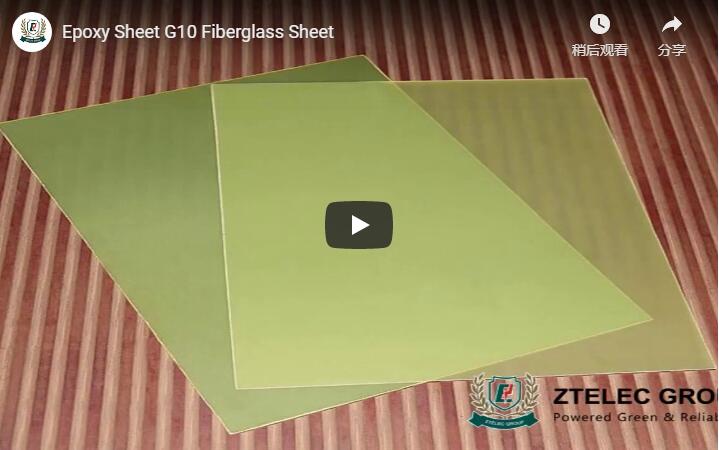

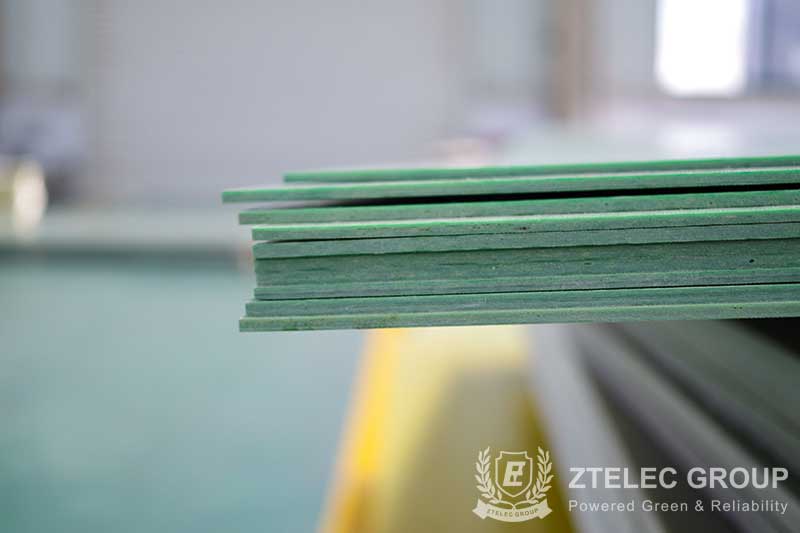

G10/EPGC203 fiberglass laminated board is also called epoxy resin alkali-free fiberglass laminated board. It is made by electronic grade fiberglass cloth impregnated with heat-resistant epoxy resin under hot pressing with stable electrical insulation property, good flatness, smooth surface and standard thickness tolerance. G10/EPGC203 fiberglass laminated board produced by ZTelec Group has various colors and types and its insulation class is F class.
Application of G10/EPGC203
G10/EPGC203 is suitable for products with high requirements on electronic insulation performance，for example, FPC reinforced board, high temperature resistant board for wave soldering，precision star wheel, PCB test stand, deflection coil terminal board, electronic switch insulation board, copper clad plate substrate, etc. It can also be used to make insulation partitions and pads for electrical equipment, insulation parts for transformer and motor, etc.
Property Parameter of G10/EPGC203
Executive Standard: GB-T 1303-2009 - IEC60893-2004
| Number | Item | Unit | Value |
| 1 | Density | g/cm3 | 1.8-1.95 |
| 2 | Water Absorption（Thickness:1-20mm） | mg | 17-73 |
| 3 | Flexural Strength at Perpendicular Lamination | MPa | ≥340 |
| （Under Normal） | |||
| 4 | Impact Strength at Parallel Lamination | KJ/m2 | ≥38 |
| （Simple Supported Beam） | |||
| 5 | Dielectric Strength at Perpendicular Lamination（Transformer Oil at 90℃）（Thickness:1mm） | KV/mm | ≥14.2 |
| 6 | Breakdown Voltage at Parallel Lamination | KV | ≥40 |
| （Transformer Oil at 90℃） | |||
| 7 | Dielectric Constant（50Hz） | - | ≤5.5 |
| 8 | Dielectric Loss Factor（50Hz） | - | ≤0.04 |
| 9 | Insulation Resistance after Immersion | Ω | ≥5.0×1010 |
| 10 | Thermal Index | - | 155 |
